Live Map

The ADAM Live Map is the public web map of recent disaster events monitored by ADAM. It shows earthquakes, tropical storms, storm disturbances and floods from the last days on a single world map, and from every event it links to the impact products that ADAM generated for it.

  • URL: https://adam.geospatial.wfp.org/live/
  • Access: public, no login, read-only
  • Requirements: a current desktop browser (Chrome, Edge, Firefox, Safari) with WebGL enabled. The map is rendered with MapLibre GL.

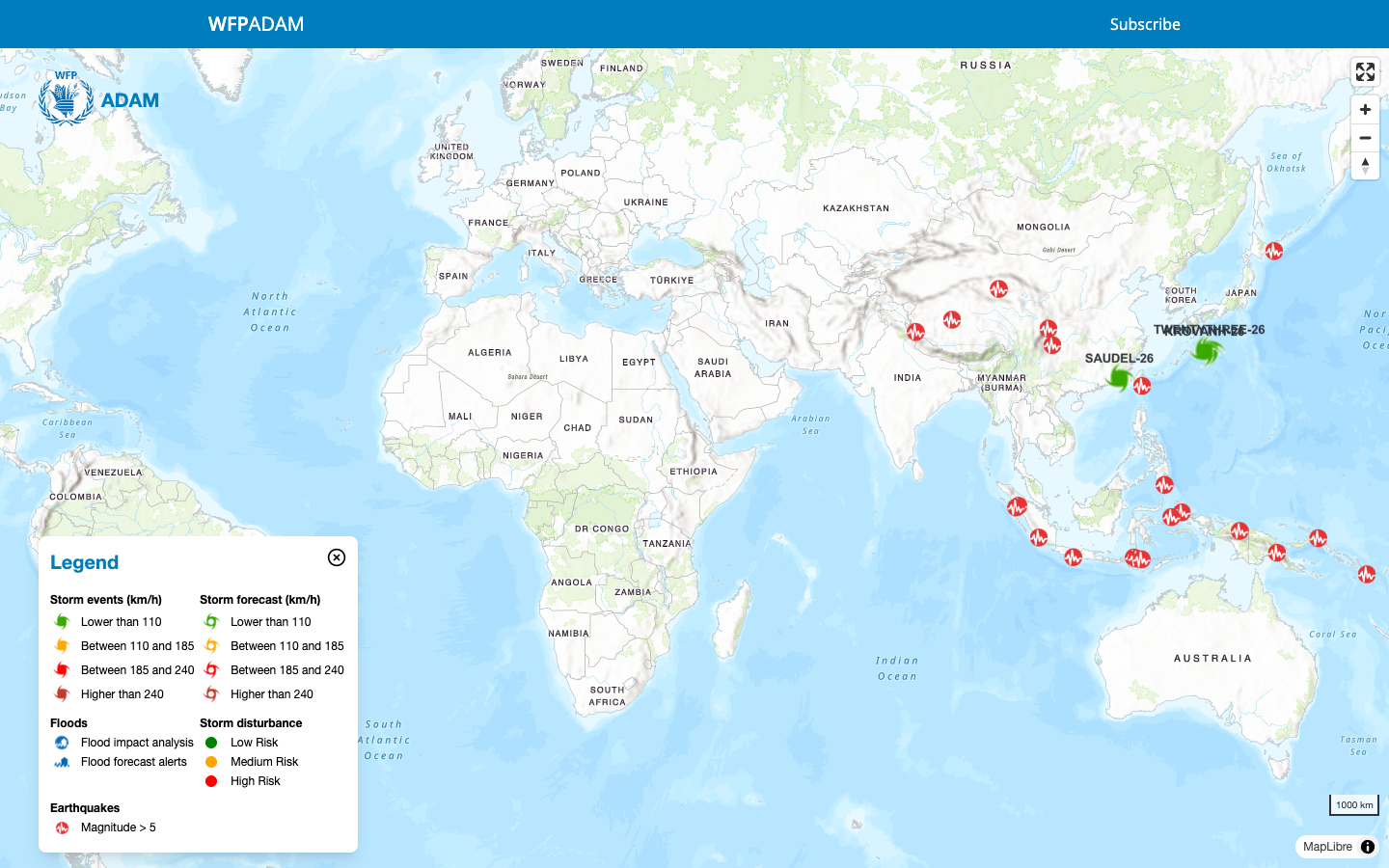

The ADAM Live Map on first load: world view, legend bottom-left, map controls top-right, Subscribe link in the header

The interface

Element Where What it does
WFP ADAM header top Site title. Subscribe on the right opens the alert subscription form in a new tab.
Legend panel bottom-left Explains every symbol on the map. Close it with the button when you need the full canvas.
Map controls top-right Enter fullscreen, zoom in, zoom out. The compass resets north; drag it to rotate the map.
Scale bar bottom-right Updates with the zoom level.
Basemap everywhere WFP topographic basemap with country boundaries and labels.

Pan by dragging, zoom with the mouse wheel or the / buttons. Fullscreen works well for operations rooms and briefings.

Reading the legend

Each hazard has its own symbol family. Marker colours carry meaning, so read them together with the legend.

Hazard Symbol Meaning
Earthquake hazard icon Earthquakes red seismograph badge Earthquakes with magnitude 5 or higher for which ADAM produced a dashboard.
Tropical storm hazard icon Tropical storms hurricane glyph, coloured by wind speed Green below 110 km/h, yellow 110 to 185 km/h, red 185 to 240 km/h, dark red above 240 km/h. A filled glyph is an observed position (Storm events); an outlined glyph is a forecast position (Storm forecast). Each storm is labelled with its name and a two-digit year, for example KROVANH-26.
Storm disturbances green, orange or red dot Developing systems that are not yet named storms, classified as low, medium or high risk.
Flood hazard icon Floods blue flood icons Flood impact analysis marks a satellite-observed flood event. Flood forecast alerts marks a river flood forecast derived from GLOFAS.

What the map shows

The Live Map is a window on the most recent activity. Older events are not shown, but they remain available through the API and in QGIS.

Layer Time window Notes
Earthquakes last 14 days magnitude 5.0 or higher, dashboard available
Tropical storms, tracks and wind buffers last 5 days all named storms updated in the window
Storm disturbances last 2 days pre-classification systems
Flood impact analyses last 10 days satellite-observed events
Flood forecast alerts last 4 days GLOFAS-based river forecasts

Quiet map

If a hazard has no symbols on the map, there was simply no qualifying event in its time window. Flood symbols in particular appear only while an event or alert is active.

Exploring an event

The popup

Click a symbol to open its popup. Every popup follows the same layout: hazard type and name or place, a coloured badge with the key figure, the date and time in UTC, the country, and a list of Useful Links that open the products ADAM generated for that event. The View button opens the event view.

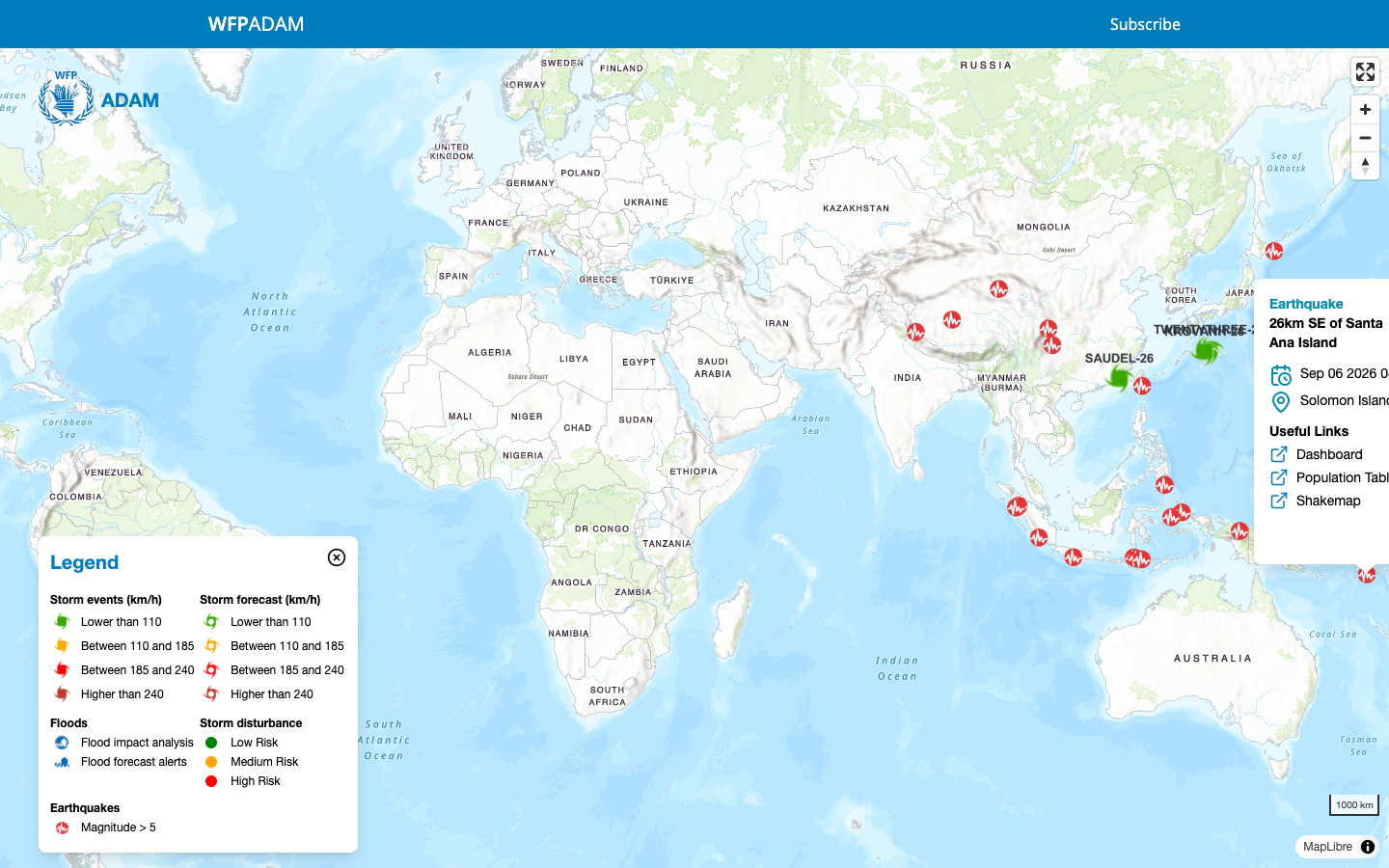

Earthquake popup: place, magnitude badge, date, country and a Dashboard link

  • Badge: magnitude
  • Dashboard: the ShakeMap dashboard image with epicentre, intensity, exposed population and WFP presence

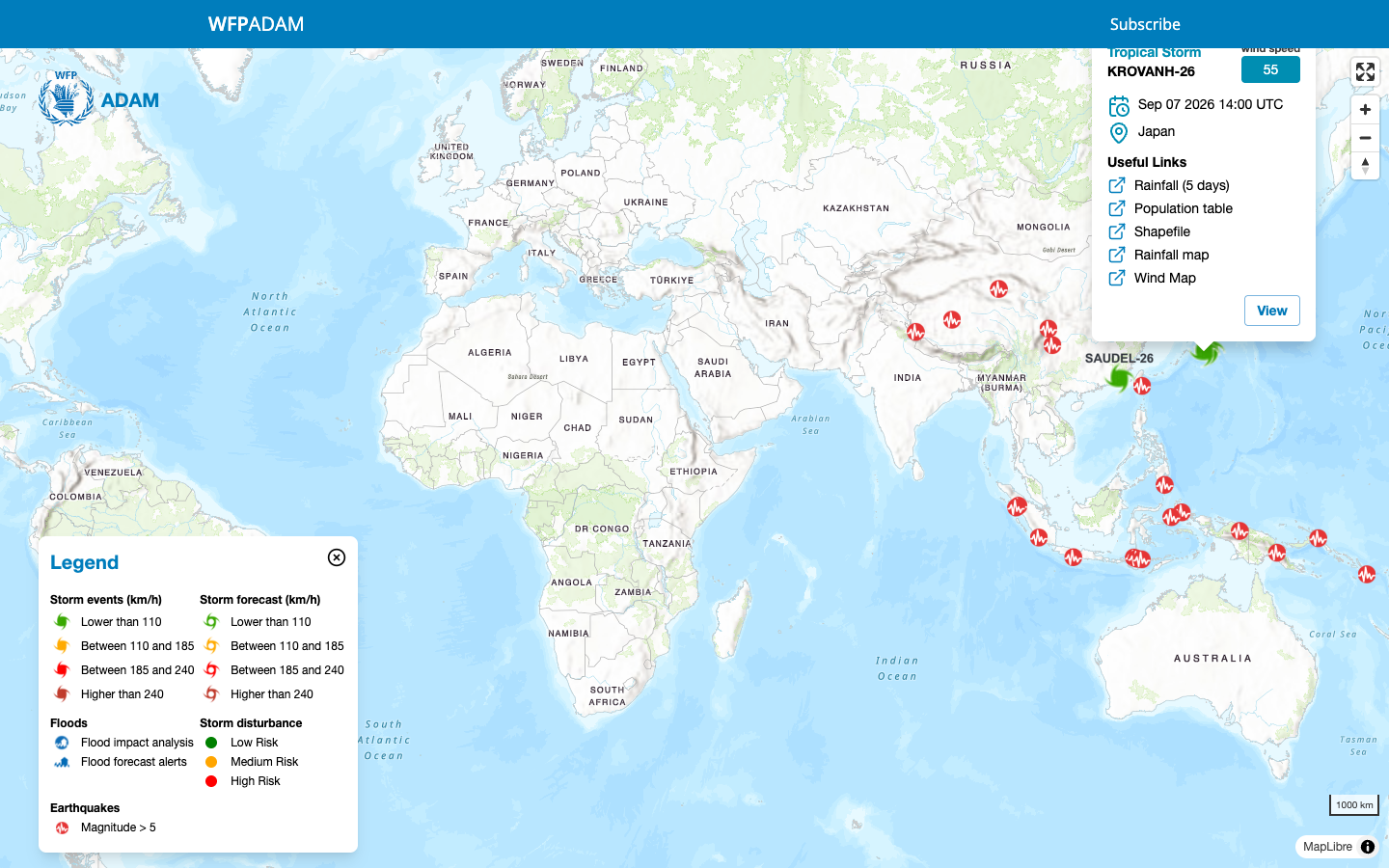

Tropical storm popup: storm name, wind speed badge, date, country and five product links

  • Badge: current wind speed in km/h
  • Rainfall (5 days) and Rainfall map: the 5-day accumulated precipitation forecast map
  • Wind Map: the track, wind buffers and population at risk map
  • Population table: exposed population per wind buffer, as a spreadsheet
  • Shapefile: track, forecast positions and buffers as GIS data

Flood symbols link to the PDF bulletin of the event or alert: the Satellite Observed Flooding report for an impact analysis, the Rainfall and river flood forecast bulletin for a forecast alert.

All products open in a new browser tab. They are plain files, so you can save, print or forward them. What each product contains is described in Event dashboards and products.

The event view

View zooms the map to the event and gives it its own address. The legend shows the event title and only the symbols relevant to that hazard. Back returns to the global map.

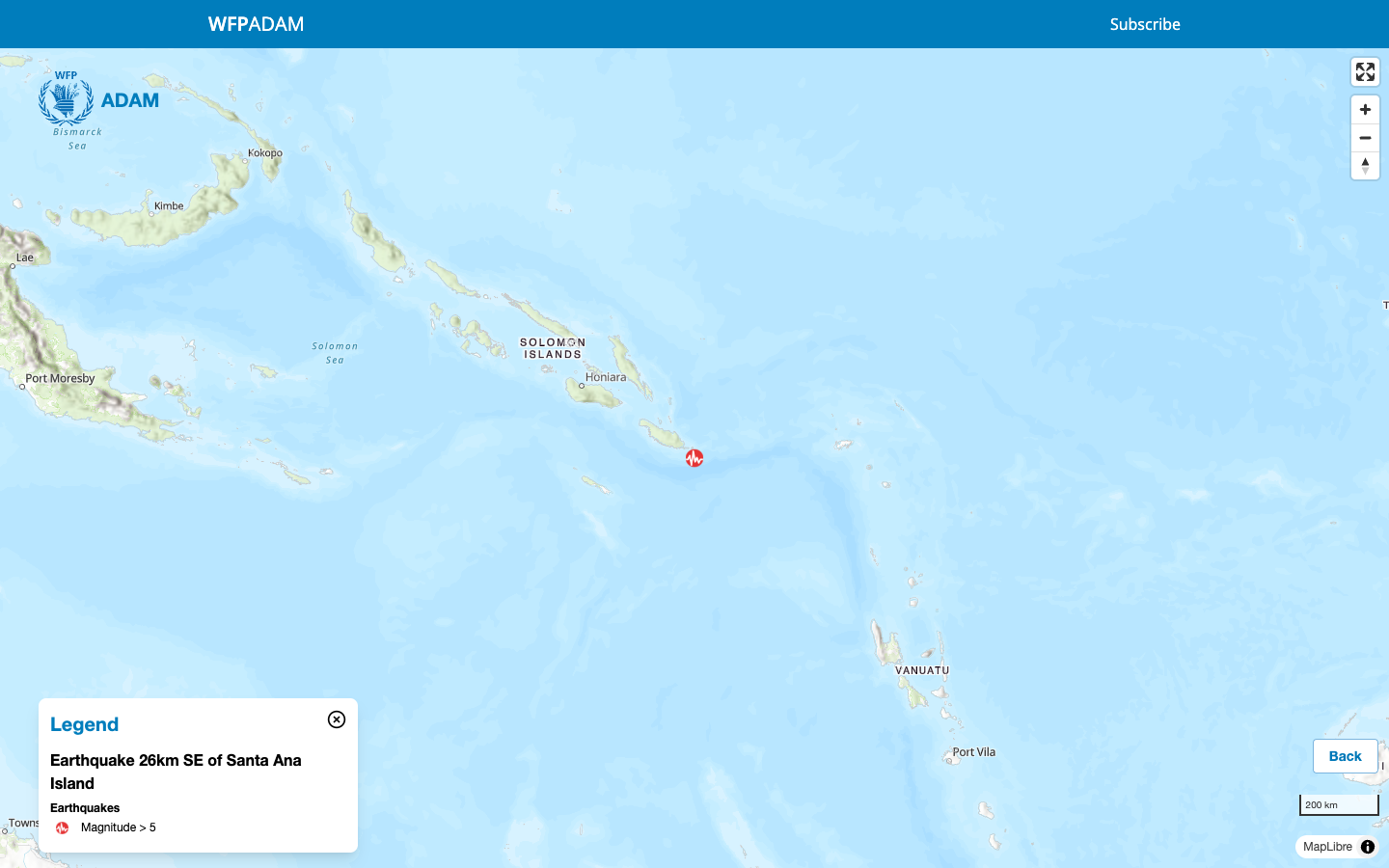

Event view of an earthquake: the map zoomed to the epicentre, event title in the legend, Back button

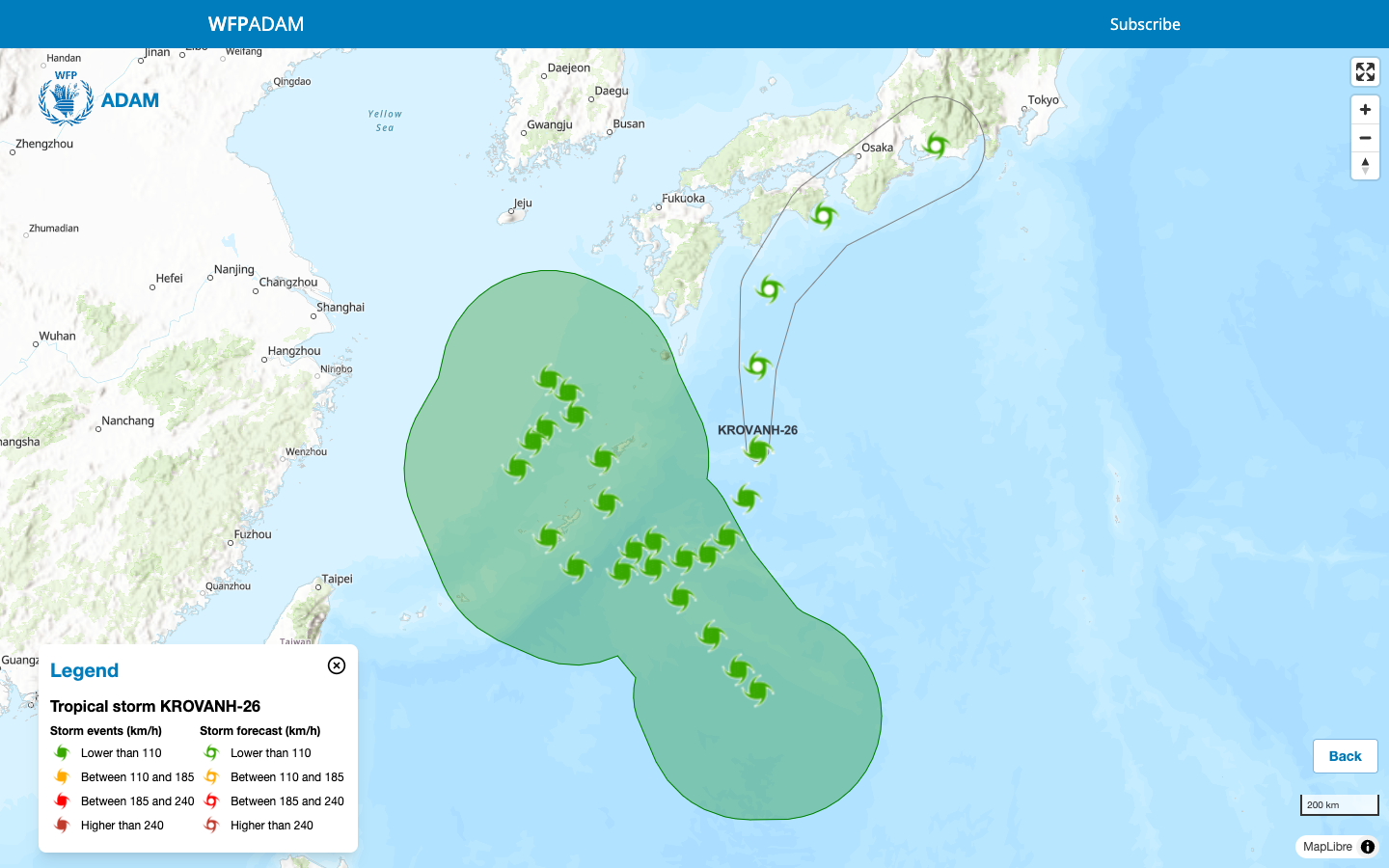

Event view of a tropical storm: observed positions inside the wind zone polygon, forecast positions with the uncertainty cone, event title in the legend, Back button

For a storm the event view adds what the global map hides: the observed positions (filled glyphs) inside the translucent wind zone polygon, the forecast positions (outlined glyphs) and the uncertainty cone around the forecast track.

The event view URL is stable for the life of the event on the map, so you can paste it in an email or a chat:

https://adam.geospatial.wfp.org/live/EQ-20260905T140607-IDN
https://adam.geospatial.wfp.org/live/TS-KROVANH-26

Earthquake identifiers combine the origin time in UTC and the ISO3 country code. Storm identifiers combine the storm name and the year. Once an event leaves the time window, the link falls back to the global map.

Getting notified

The map is a pull channel: you open it when you need it. To be told when something happens, use the Subscribe link in the header and register for email alerts by hazard and area. See Alerts.
